“PERFORATION PERFECTION” by GRAFIX
Compatible with Heidelberg Perforating Equipment

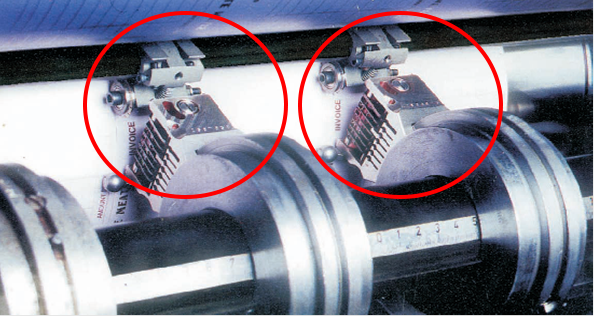

We manufacture and Supply the Graphics Industry with Perforation Systems and Perforating Wheels for Heidelberg machines ie: SM 52, Printmaster 52, GTO 46, GTO 52. HERBEN Magnacams and other Press Parts are not required with our systems. Grafix Systems does not interfere with the positioning of the numbering boxes or cams as shown in the photo.

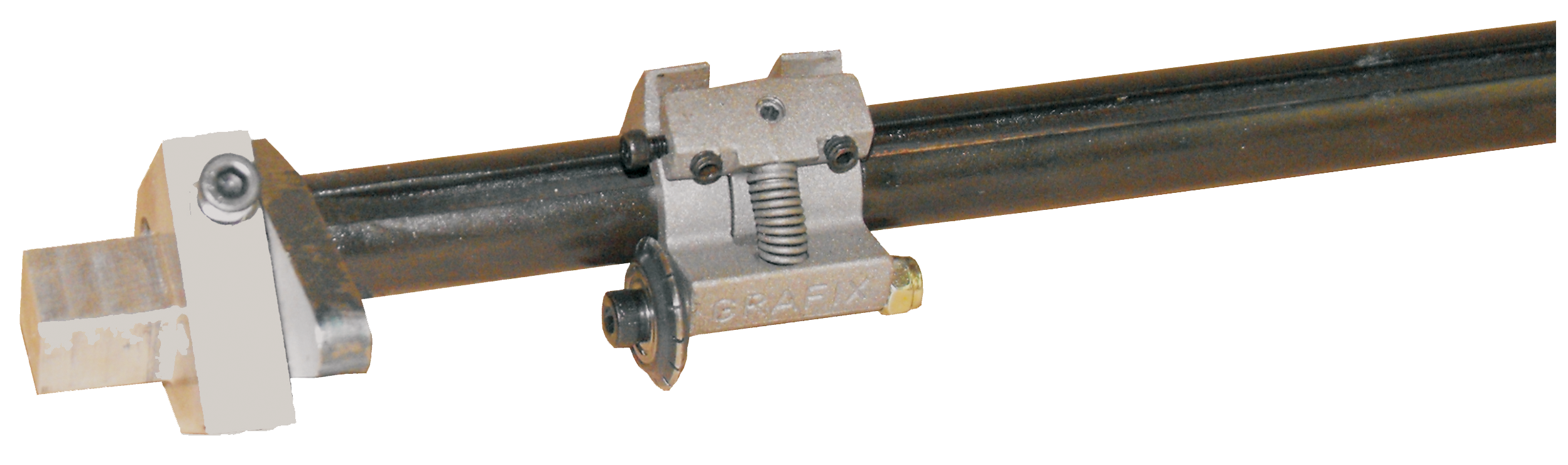

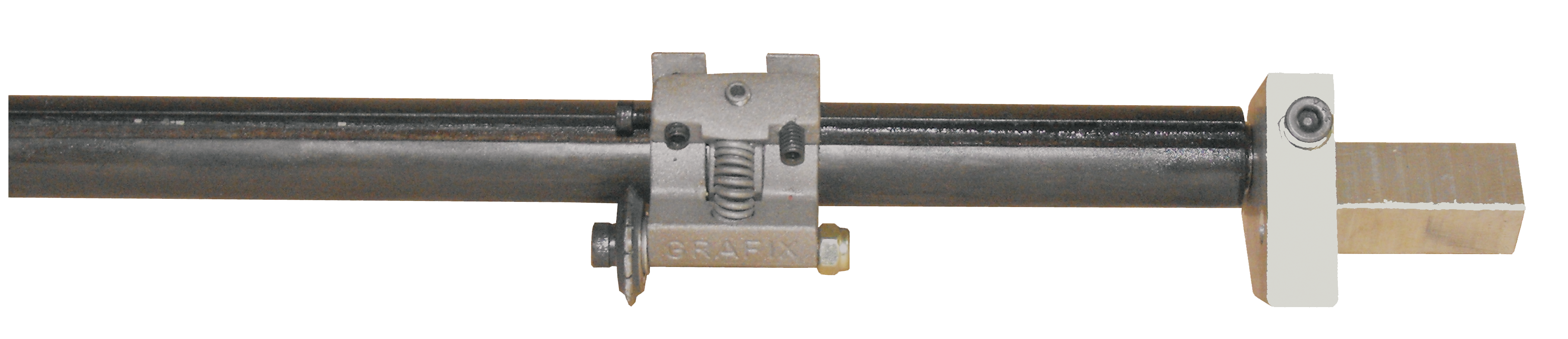

Basic Kit includes 1 x Carrier Bar, 1 x Set Bracket, 2 x Perforation Heads as shown in photo fitted with 7 TPI Perforation Wheels.
BUY DIRECT FROM MANUFACTURER AND SAVE, THE PRICE FOR 2 GRAFIX HEADS ARE LESS THAN 1 HEIDELBERG HEAD.
About the Grafix System
This system fits where the smoother bar normally fits the side brackets are replaced by modified ones. Your smoother bar can still be used if deemed necessary.
As this unit is positioned close to the impression cylinders, the back edge of the sheet is still being held by those cylinders and therefore cannot move.
This prevents the perforation “running off’ therefore retaining perfectly straight perforations at all times
Benefits about using our Grafix System
- Takes only 30 seconds to position
- Perforates perfectly straight & parallel
- No run off towards back edge even when perforating the narrowest of margins
- Perforates anywhere on the sheet
- Stays on machine when not in use
- Does not obstruct positioning of numbering boxes
- Jackets last 15 – 20 times longer
INTRODUCING THE NEW SM52 SYSTEM
Our all new re-designed SM52 brackets fit directly into the existing sheet smoother mounting blocks, taking only 1 minute to fit

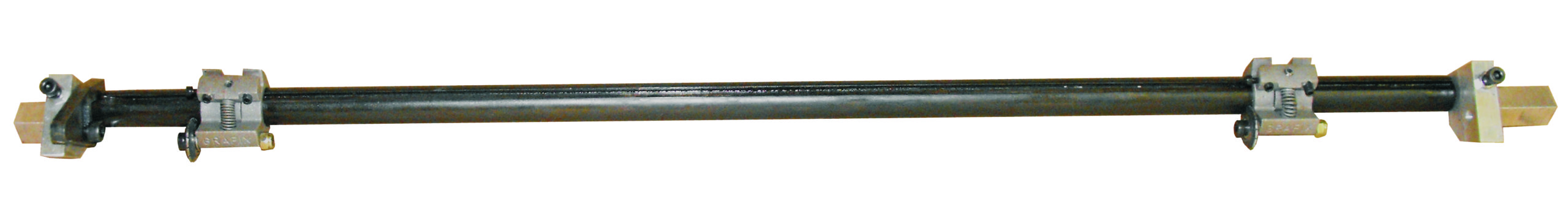

SM52 COMPLETE UNIT
For more information on any of our compatible Heidelberg Perforating Equipment please contact us
